3 Years Warranty

Product Overview:

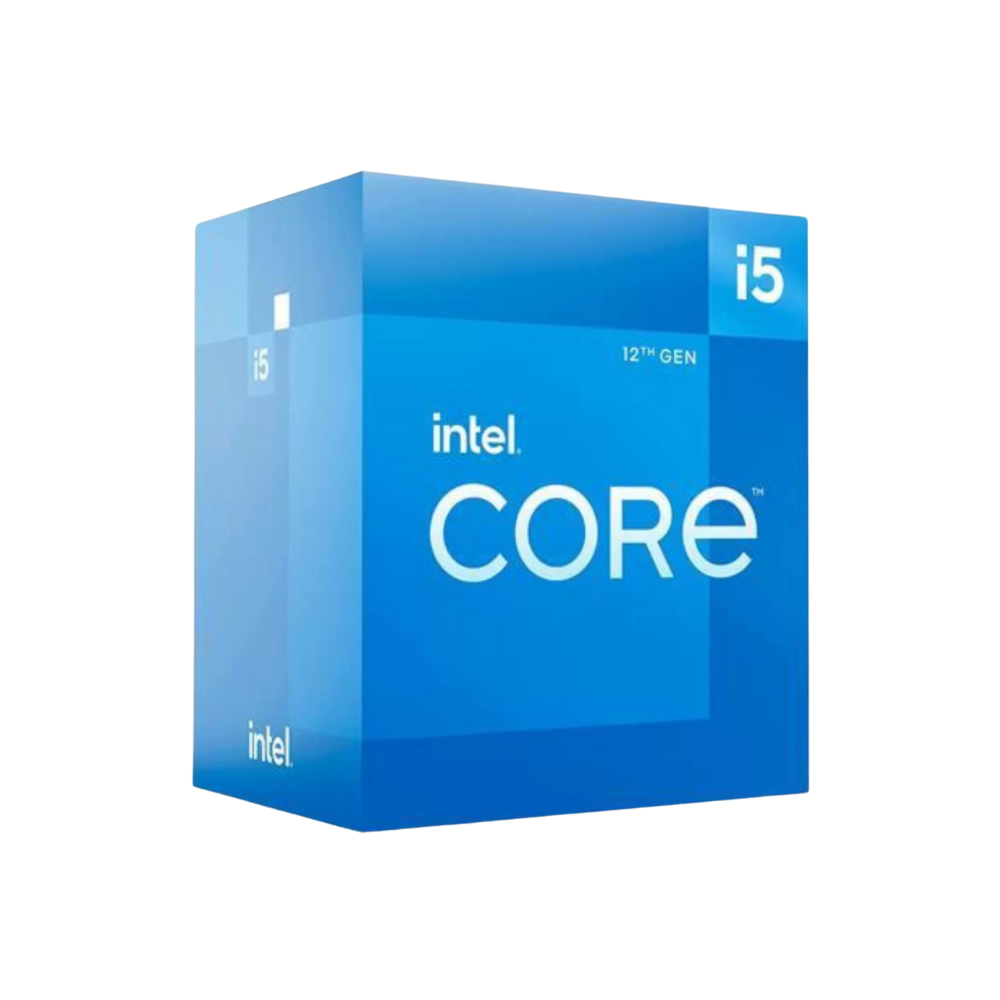

• Product Collection: 12th Generation Intel® Core™ i5 Processors
• Code Name: Products formerly Alder Lake
• Vertical Segment: Desktop
• Processor Number: i5-12400F
• Lithography: Intel 7
• Recommended Customer Price: $184.00 – $194.00
• Use Conditions: PC / Client / Tablet

CPU Specifications:

• Total Cores: 6
• Performance-cores: 6
• Efficient-cores: 0
• Total Threads: 12
• Max Turbo Frequency: Up to 4.40 GHz
• Performance-core Max Turbo Frequency: 4.40 GHz
• Performance-core Base Frequency: 2.50 GHz
• Cache: 18 MB Intel® Smart Cache
• Total L2 Cache: 7.5 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 117 W
• Integrated Graphics: Not available (F-series processor)

Supplemental Information:

• Marketing Status: Launched
• Launch Date: Q1 2022
• Embedded Options Available: No

Memory Specifications:

• Max Memory Size (dependent on memory type): 128 GB
• Memory Types: DDR5 4800 MT/s, DDR4 3200 MT/s
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 76.8 GB/s

Expansion Options:

• Direct Media Interface (DMI) Revision: 4.0
• Max # of DMI Lanes: 8
• Scalability: 1S Only
• PCI Express Revision: PCIe 5.0 and PCIe 4.0
• PCI Express Configurations: Up to 1×16+4, 2×8+4
• Max # of PCI Express Lanes: 20

Package Specifications:

• Socket Supported: FCLGA1700
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2020C
• TJUNCTION: 100°C
• Package Size: 45.0 mm × 37.5 mm
• Max Operating Temperature: 100°C

Advanced Technologies:

• Intel® Gaussian & Neural Accelerator: 3.0
• Intel® Thread Director: No
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• Intel® Optane™ Memory Supported: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Turbo Boost Max Technology 3.0: No
• Intel® Turbo Boost Technology: 2.0
• Intel® Hyper-Threading Technology: Yes
• Intel® 64: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, SSE4.2, AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes
• Intel® Volume Management Device (VMD): Yes

Security & Reliability:

• Intel® Standard Manageability (ISM): Yes
• Intel® Secure Key: Yes
• Intel® Control-Flow Enforcement Technology: Yes
• Intel® AES New Instructions: Yes
• Intel® OS Guard: Yes
• Execute Disable Bit: Yes
• Intel® Boot Guard: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® VT-x with Extended Page Tables (EPT): Yes
